Midcoast Trucks

**IN STOCK AND READY FOR IMMEDIATE DELIVERY**
MACHINE DETAILS:

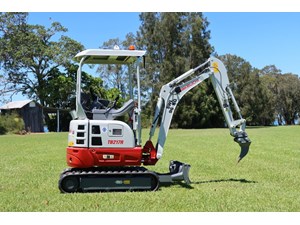

1 x only NEW TAKEUCHI TB217R - Reduced Radius Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight: 1680Kg
Overall Width: Crawler retracted 980mm; Crawler extended 1300mm
Overall Height: 2345mm
Transport length: 1570mm
Max Dump height: 2545mm
Max Dig depth: 2390mm
ENGINE:
Yanmar 3TNV70 EU Stage V Emission compliant
Rated Output (ISO 14396) 11.5 kW/2,400 min-¹
Maximum Torque 52.6 Nm/1,800 min-¹

HYDRAULIC SYSTEM:
System: Variable Displacement
Variable Displacement Pump
Straight Travel Circuit
Hydraulic Joystick Controls
Foot Pedal Control for Service Port 1
Auxiliary Hydraulic Circuit Plumbed to Arm
Hydraulic Tank with Fluid Level Sight Gauge
Dual Auxiliary Circuits; 2-way flow selectable.
Service Port 1(SP1); Flow Rate 33.6L/min,  Hydraulic pressure 21.0MPa
SP2 Auxiliary circuit; 10.8L/min,  Hydraulic pressure 20.0MPa
SP3 Hydraulic pressure 20.0MPa
BOOM & ARM CONFIGURATION:
Independent Mono Boom Swing
Cushioned Boom and Swing Cylinders
Top Mount Boom Cylinders
930 mm Arm
1,130 mm Arm
Arm and Boom Holding Valve with
Lift Alarm (Optional)
Pattern Change Valve (ISO or G)
INCLUDING:
Canopy, Rubber tracks, Long  Stick Arm, Long Dozer Blade, 2-Way Lever, Travel Alarm, Stop Valve
(1way/2way), PVC Deluxe Seat, Accumulator, Double Element, Heavy Counter Weight
Half hitch, 200 300 450mm buckets with teeth, 1000mm mud bucket & ripper
Other attachments available (at extra cost)
Ask for Chris Carlon
STOCK # 600636

2025 TAKEUCHI TB217R

MACHINE DETAILS:

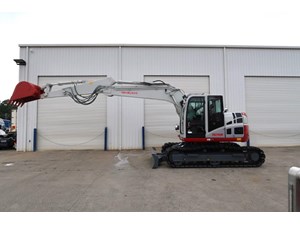

1 x only NEW TAKEUCHI TB2150R EXCAVATOR
OPERATING SPECIFICATION:
Approximate Operating Weight; 16,150kg
Overall Width: 2,490mm. Height: 2,960mm
Transport length: 7,445mm.
Max Dump height: 7,170mm,
Max Dig depth: 6,030mm
ENGINE:
Deutz TCD3.6L4 3.6 litre,
4-cylinder, Turbocharged Diesel Engine.
Gross Power; 85kW @ 2000 rpm.
Peak Torque; 460.0Nm @ 1600 rpm.
Onboard Refuelling pump
HYDRAULIC SYSTEM:
System: Variable Displacement Open Center
Air Breather for Hydraulic Tank
Dual Auxiliary Circuits; 2-way flow selectable.
High Flow Service Port 1(SP1); 112-224L/min,
SP2 Auxiliary circuit; 54.8L/min,
SP3 Hydraulic hitch circuit
Adjustable flow; 1st, 2nd and 4th Auxiliary Circuits
Adjustable pressure; 1st, 2nd Auxiliary Circuits
Cylinders; Double acting piston type; cushioned
2-way pattern changeover valve. (ISO or G)
BOOM & ARM CONFIGURATION:
Boom; HD Single-Piece, Fixed.
Arm; long stick arm
Quick hitch; As per included options.
Bucket; As specified in included options.
Craning/Anti burst valves Boom/Arm Cylinders
INCLUDING:
ROPS/FOPSII OPG-2 Air-conditioned Cabin.
7 LCD Multi-information display Audible & Visual
warning/alarms and hour meter.
Radio; with Bluetooth media Connectivity
Controls; Pilot control Joysticks, with proportional
control for AUX Hydraulics.
Seat; High back heated air suspension,
Seatbelt; 2 retractable. 12V power outlet.
Skylight with sunshade
Horn, Travel Alarm, Surround Colour Camera System.
Overload warning system for craning.
Ask for Chris Carlon
STOCK # 303725

2025 TAKEUCHI TB2150R

MACHINE DETAILS:
NEW TAKEUCHI TB350R - Reduced Radius Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight; 5,085Kg
Width: 2000 mm
Height: 2540 mm
Max Dump height: 3,945mm
Max Dig depth: 3,575mm
Max Reach: 6,065mm
ENGINE:
Kubota Kubota / V2607
4-cylinder, Diesel Engine

HYDRAULIC SYSTEM:
System;  2x Variable, 1x gear pumps.
SP1 AUX Flow 93.2/min, Proportional control
2x way flow selectable, and Detent mode.
SP3 Hydraulic Hitch circuit.
Cylinders; Double acting piston type.
Cushioned boom cylinder
Boom & Arm Holding valves(Anti-burst valves)
2-way pattern changeover valve.

BOOM & ARM CONFIGURATION:
Boom; Standard, Arm; Long arm
Independent Mono boom Swing.
Quick hitch; As per included options.
Bucket; As specified in included options.
INCLUDING: CAB w/ Rain Guard, RT, LSA, Float Dozer Blade, 2-Way Lever, Travel Alarm, BHV, AHV,
SP1 (Proportional Lever-Switch & Detent), SP2, SP3 Upper Mount, Auto Tank, Auto
pressure release, Accumulator, Air Breather, Auto Decel, Double Element, Head Rest,
Fuel Transfer Pump, Swing Stopper, Air Conditioner, Less Bucket, LED Package 2, DAB
Radio, Reverse Camera

Other attachments available on request
STOCK # 600699

2025 TAKEUCHI TB350R

**IN STOCK AND READY FOR IMMEDIATE DELIVERY**
EOFY Deal. 12 month free service parts excluding labour.
MACHINE DETAILS:
1 x only NEW TAKEUCHI TB210R Reduced Radius Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight; 1,150 kg
Overall Width: 750-1020mm
Height: 2,190mm (1,475mm folded canopy)
Transport length: 2,955mm.
Max Dump height: 2,210mm,
Max Dig depth: 1,755mm
ENGINE:
Kubota D722/E4B, 0.72 Litre
3-cylinder, Diesel Engine
Gross Power; 8.0kW @ 2200 rpm.
Peak Torque; 36.0Nm @ 1900 rpm.
HYDRAULIC SYSTEM:
System;  Tandem gear pumps.
SP1 22L/min Auxiliary hydraulic flow.
2x way flow selectable.
Cylinders; Double acting piston type.
Cushioned boom cylinder
2-way pattern changeover valve.
BOOM & ARM CONFIGURATION:
Boom; Standard, Arm; 880mm
Quick hitch; As per included options.
Bucket; As specified in included options.
Independent Mono Boom Swing
UNDERCARRIAGE AND GUARDS:
Travel Motors; 2 speed travel.
Track frame; Hydraulic retractable(750-1020mm)
Tracks; 130mm Rubber.
Blade; Adjustable width
Counterweight; Wrap-around, minimal tail swing.
INCLUDING:
ROPS Frame; 2-post foldable. Audible & Visual warning/alarms and hour meter.
Controls; Pilot control Joysticks; Foot pedal for AUX Hydraulic control
High back suspension seat; 12V power outlet.
Half hitch, 200 300 450mm buckets with teeth, 700mm mud bucket & ripper
Other attachments available (at extra cost)
Ask for Chris Carlon
STOCK # 600635

2025 TAKEUCHI TB210R

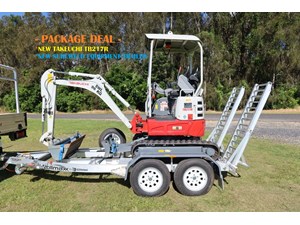

PACKAGE DEAL Ready for immediate delivery
-Stock # 600637 NEW TAKEUCHI TB217R - Reduced Radius Excavator
-Stock # 600693 - SUREWELD SW2600 EQUIPMENT TRAILER
(Truck NOT included.  See separate deal listed "Stock # B85983")
MACHINE DETAILS:
1 x only NEW TAKEUCHI TB217R - Reduced Radius Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight: 1680Kg
Overall Width: Crawler retracted 980mm; Crawler extended 1300mm
Overall Height: 2345mm
Transport length: 1570mm
Max Dump height: 2545mm
Max Dig depth: 2390mm
ENGINE:
Yanmar 3TNV70 EU Stage V Emission compliant
Rated Output (ISO 14396) 11.5 kW/2,400 min-¹
Maximum Torque 52.6 Nm/1,800 min-¹
HYDRAULIC SYSTEM:
System: Variable Displacement
Variable Displacement Pump
Straight Travel Circuit
Hydraulic Joystick Controls
Foot Pedal Control for Service Port 1
Auxiliary Hydraulic Circuit Plumbed to Arm
Hydraulic Tank with Fluid Level Sight Gauge
Dual Auxiliary Circuits; 2-way flow selectable.
Service Port 1(SP1); Flow Rate 33.6L/min,  Hydraulic pressure 21.0MPa
SP2 Auxiliary circuit; 10.8L/min,  Hydraulic pressure 20.0MPa
SP3 Hydraulic pressure 20.0MPa
BOOM & ARM CONFIGURATION:
Independent Mono Boom Swing
Cushioned Boom and Swing Cylinders
Top Mount Boom Cylinders
930 mm Arm
1,130 mm Arm
Arm and Boom Holding Valve with
Lift Alarm (Optional)
Pattern Change Valve (ISO or G)
INCLUDING:
Canopy, Rubber tracks, Long  Stick Arm, Long Dozer Blade, 2-Way Lever, Travel Alarm, Stop Valve
(1way/2way), PVC Deluxe Seat, Accumulator, Double Element, Heavy Counter Weight
Half hitch, 200 300 450mm buckets with teeth, 1000mm mud bucket & ripper
STOCK # 600637
TRAILER;
1 x only NEW SUREWELD SW2600 EQUIPMENT TRAILER
AGGREGATE TRAILER MASS:               2600KG
ALLOWABLE PAYLOAD:                           2200 KG
TARE WEIGHT:                                               400KG
DECK WIDTH :                                               1400MM
DECK LENGTH:                                             1900MM
BUCKET REST :                                             1400MM
TRAILER LENGTH:                                       4700MM
STOCK # 600693

**IN STOCK AND READY FOR IMMEDIATE DELIVERY**
MACHINE DETAILS:
NEW TAKEUCHI TB225 Excavator
OPERATING SPECIFICATION:
Approximate Operating Weight; 2,430kg
Width: 1,500mm
Height: 2,430mm
Transport length: 4,180mm.
Max Dump height: 2,775mm,
Max Dig depth: 2,540mm
ENGINE:
Yanmar 3TNV82A 1.33 Litre
3-cylinder, Diesel Engine
Gross Power; 16.5Kw (22.12hp) @ 2400 rpm.
Peak Torque; 85.1Nm @ 1320 rpm.
Dual element air filter. Auto-Decel
Auto fuel bleed.
HYDRAULIC SYSTEM:
System; 2 x Variable, 1x gear pumps.
Auxiliary Hydraulic Flow 40.0L/min
Auxiliary Circuit; 2x way flow selectable.
SP3 Hydraulic Hitch circuit
Cylinders; Double acting piston type.
Cushioned boom cylinder
2-way pattern changeover valve.
BOOM & ARM CONFIGURATION:
Boom; Standard, Arm; Long arm
Quick hitch; As per included options.
Bucket; As specified in included options.
INCLUDING:
ROPS/TOPS Operator Protective Structure
Isolation mounted platform; reduced vibration
3.5 LCD Multi-information display, Bluetooth Radio
Audible & Visual warning/alarms and hour meter.
Controls; Pilot control Joystick.
Proportional AUX Hydraulic control.
Seat; High back suspension, 2 retractable seatbelt.
12V power outlet.
LED Beacon, Safety Decals, Risk Assessment.
Hydraulic Hitch
200mm, 300mm, 450mm Diggin buckets, 1100mm mud bucket with BOE
36 months, 3000 hours warranty, whichever occurs first.
Other attachments available on application
Stock # 600700

2025 TAKEUCHI TB225
